Certain requirements have to be met for the implementation of EBICS 3.0 because customers can also use EBICS 2.5 during the transition period. The primary goal for the implementation has to be the compliance with all requirements according to the EBICS specification version 3.0, to realise a step-by-step harmonisation. Thereby, the impact on the customer contracts and the conversion effort for institutions and manufacturers should be kept as low as possible.

In general, the following topics are relevant for the interplay:

• Unified certificate format
• Version compatibility included in the contract
• National BTF mappings

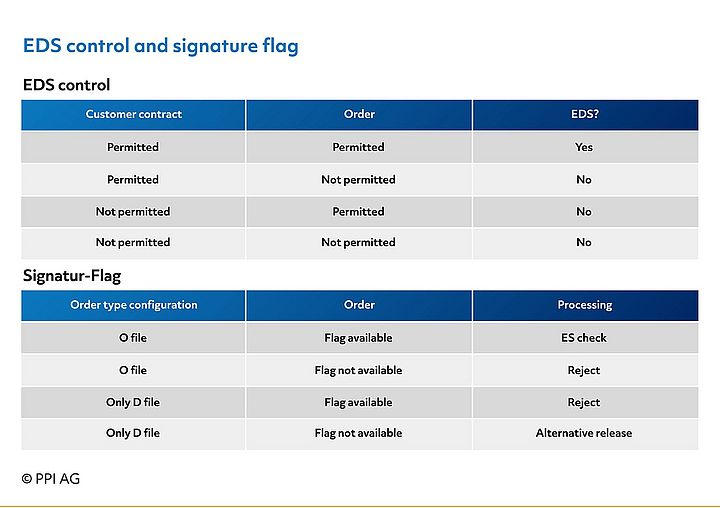

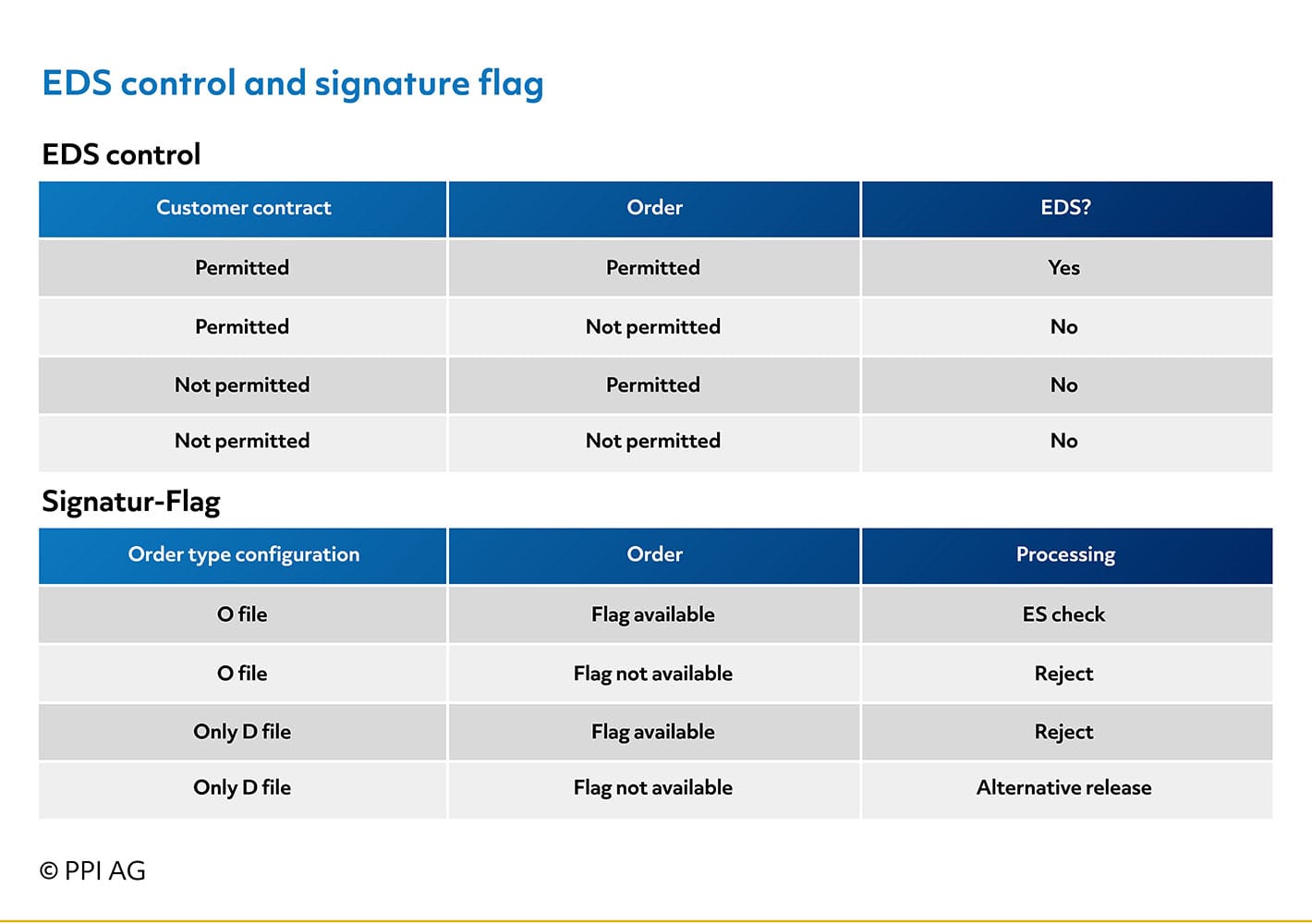

• Special case EDS and signature flag
• Practical requirement: retention of interfaces
• Cryptographic requirements

With EBICS 3.0, X.509 is the only approved certificate format. This means that at least the X.509 syntax as part of the H005 schema has to be supported. Due to the missing PKI infrastructure, for a certain transition period, CA-based certificates are not checked against the issuing CA if the DK profile is used. Regardless, the validity date of the certificate is checked locally against the current date.

BTF is introduced in addition to the already known order types and file formats. For an institution this presents the situation that, according to the customer’s installation, orders can be submitted with the two different EBICS versions 2.5 and 3.0. If certain requirements are met, a mapping between BTF and order type allows you to create BTF orders with the existing authorisation structure based on order types and thus ensures version compatibility.

As seen in the figure above, the customer contract, the order and the signature flag affect whether a submitted order without sufficient authorisation is rejected or send for EDS processing.

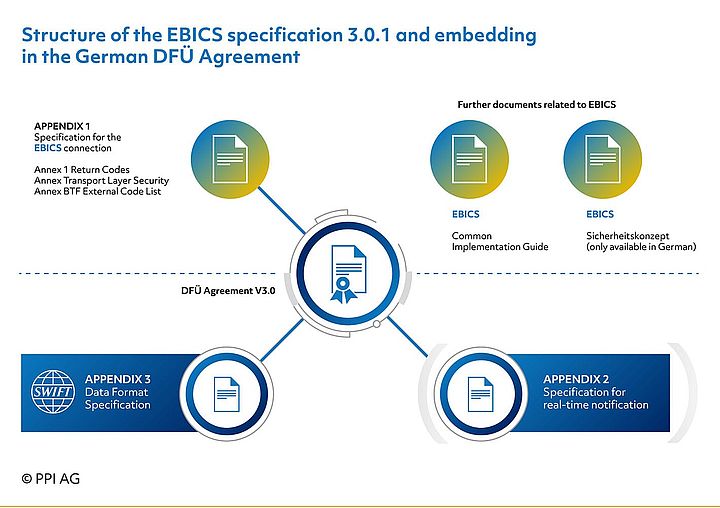

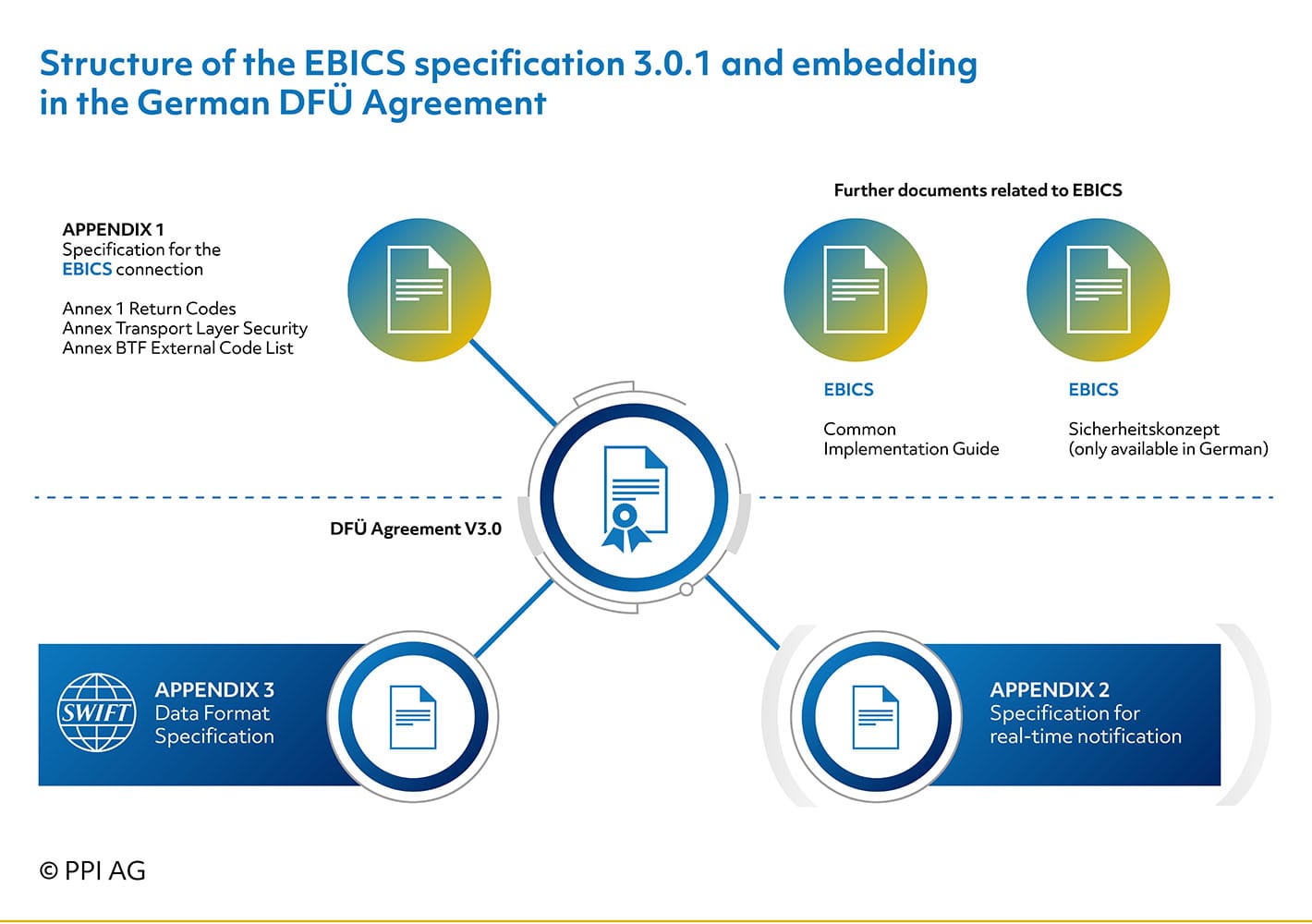

The EBICS specification 3.0 opens the door for a wide harmonisation of Europe's EBICS landscape and also makes the standard more attractive for other countries.

Conversely, when introducing EBICS 3.0 into existing implementations, we have to make sure that the existing interfaces for application systems can be retained in order to enable a resource-efficient migration.

As you will see in later sections, some cryptographic procedures can no longer be supported by EBICS 3.0. This affects the authentication procedure X001, the signature procedure A004 and the encryption procedure E001.

In addition, only RSA keys with at least 2048 bits shall be used.

The GBIC has especially published the document Krypto LifeCycle EBICS ^[6] for Germany at www.ebics.de. This document makes specifications for the cryptographic components used in the EBICS procedure, taking into account the recommendations of the German Federal Office for Information Security (BSI). The document is maintained separately from the EBICS specification.

After this description of the different versions' interplay, the following sections will only consider the current EBICS version 3.0.

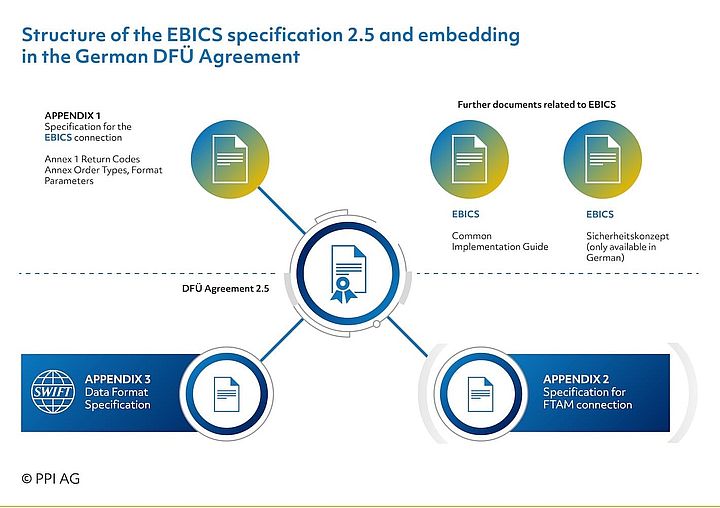

Anyone reading the EBICS specification for the first time quickly realises that it was not devised on the drawing board but that it optimally maps the scenarios encountered in practice. This is also attributable to the fact that before the specification was developed, products had already existed on the market which offered what might be termed as proof of concept. The common feature of all products was that they all showed possibilities of mapping mass payments for corporate customers on Internet platforms. Furthermore, each product realised its own ideas for application extensions. Thus, thanks to this portfolio the optimal solutions were able to find their way into the EBICS standard, thereby avoiding the familiar round of beginner's mistakes. This also explains why at the time of introducing EBICS problems such as segmenting large messages had already been solved or why the concept for the electronic distributed signature already existed in a mature and proven form and therefore did not require supplementing or optimising in the course of its first practical application.

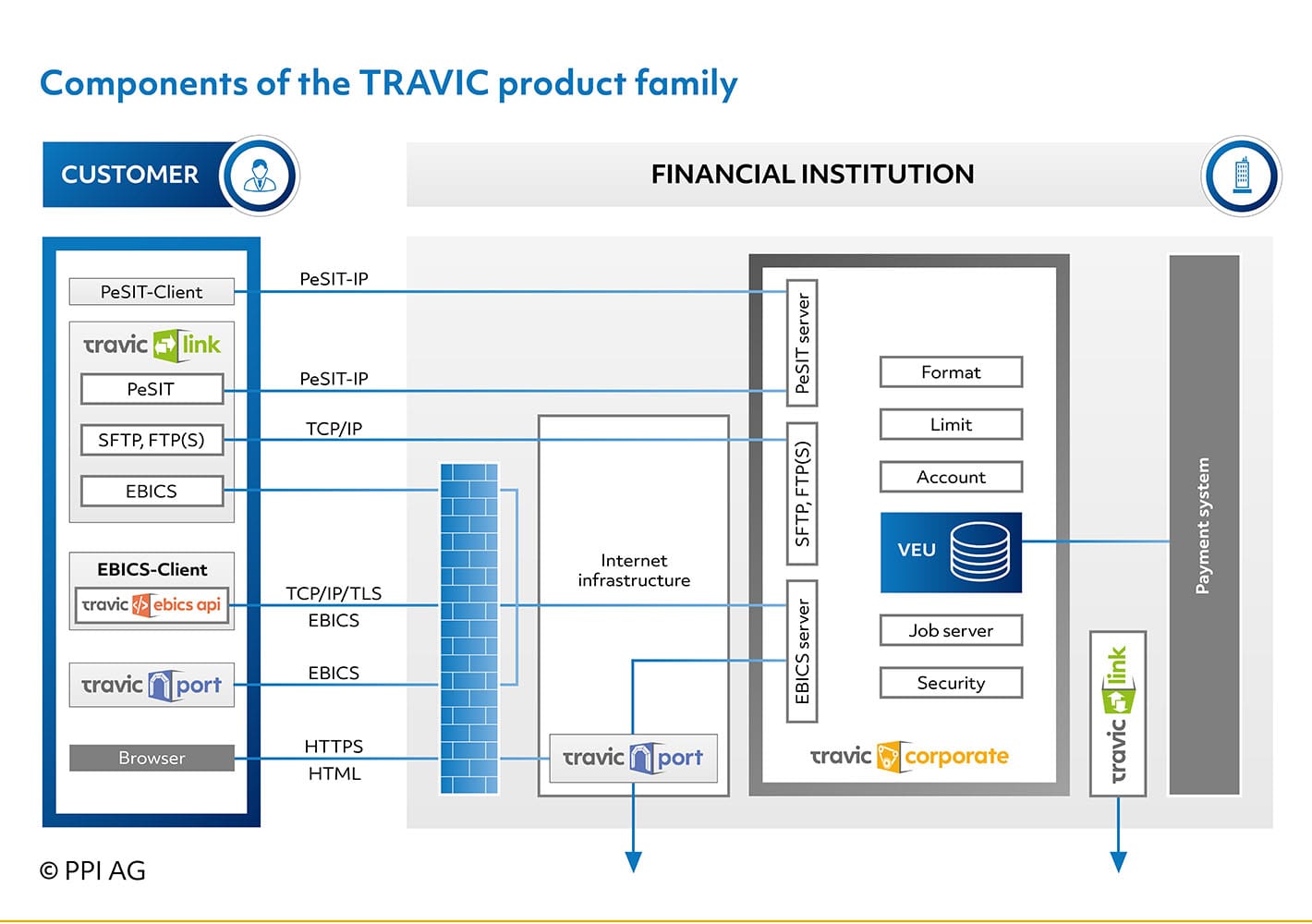

For some years now every institution has been offering browser-based corporate customer portals as part of their general offer. As EBICS is also based on Internet technologies, it is fair to assume that these two worlds can be harmoniously merged. And this is indeed the case as long as we are dealing with an institution's own portal.

While the TCP/IP protocol deals with tasks such as dynamic routing in the event of a sectional default, HTTP controls the session between two partners. The only version used for EBICS is the secured version HTTPS which is indicated in the browser by a lock in the lower corner. The responsibility for this security lies with TLS (Transport Layer Security) which replaces the former SSL (Secure Socket Layer).

The switch from SSL to TLS alludes to the general problem of fusing Internet technologies and their application standards: according to the German Federal Office for Information Security (BSI) by now the versions 1.0 and 1.1 of the TLS protocol are also considered to be obsolete and in need of replacement. Until now the integration of these standards in the EBICS specification did not allow for a lot of flexibility. With the introduction of EBICS 3.0 these security procedures of the transport layer have been transferred into a separate document that can be maintained independently from the business standard.

TLS ensures a secure transmission between the customer system and the first HTTP server or rather web server in the institution. Currently, at least version 1.2 is recommended. It also fulfils this task sufficiently well and securely, although this was deemed insufficient by the EBICS standardisers, as is explained in the section after next.

To make the following sections easier to understand, this section provides an explanation of the XML standard. In the case of BCS, it was still possible to conceal the necessary protocol tasks in the file name, but for EBICS a separate protocol envelope is required due to the abundance of tasks. In the field of Internet technology it is more advisable to use the data description language XML – Extensible Markup Language– for this purpose.

With EBICS each request or response consists of an order analogous to the defined order types or the BTF container respectively and an XML envelope. In other words it is a kind of hybrid system, with the bank-technical SEPA or SWIFT formats remaining the centrepiece while being supplemented by XML structures. The overhead caused by this technology is minimal when considering the mass payments usually being handled here and the vast size of the payment transaction file compared to the XML envelope.

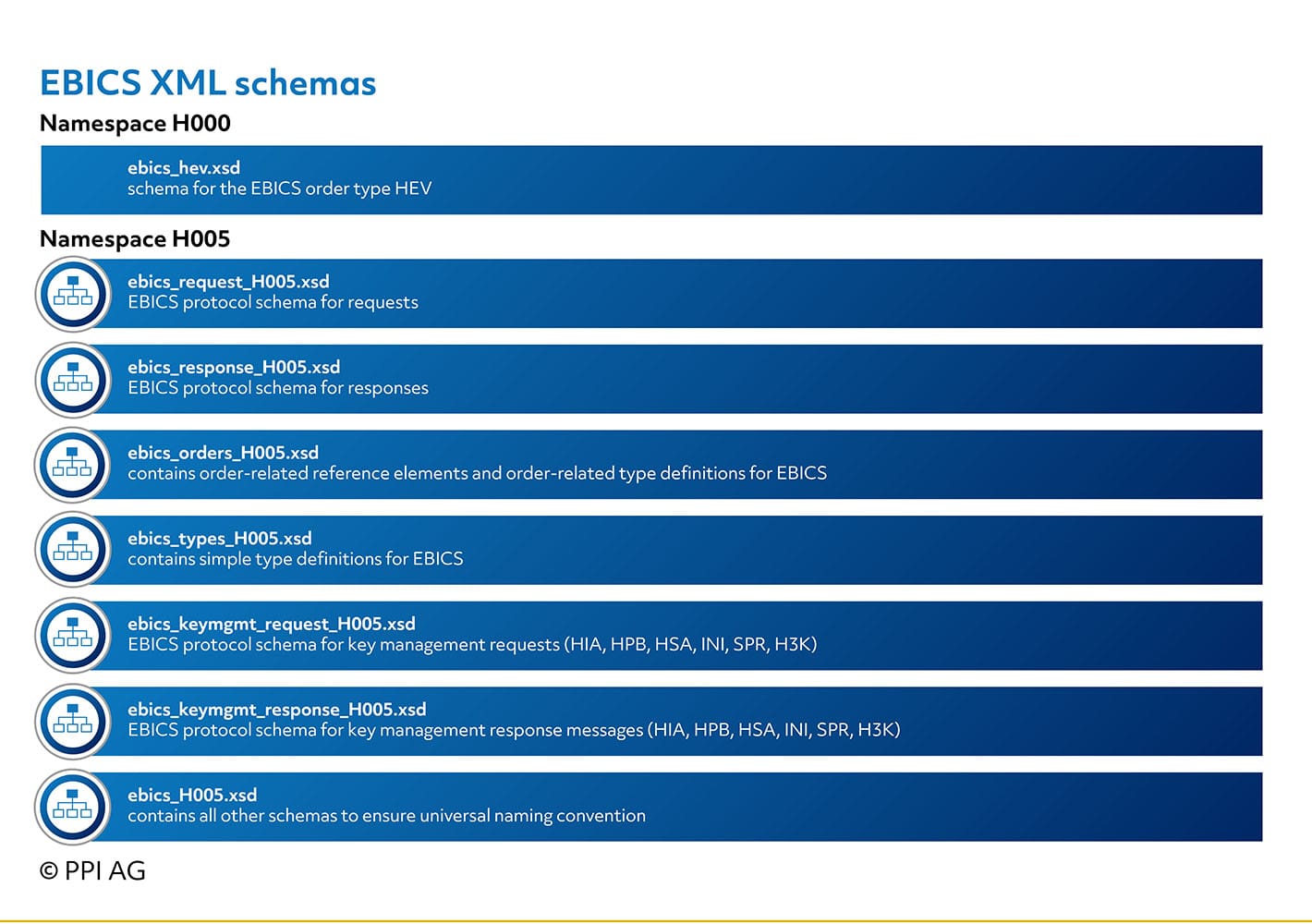

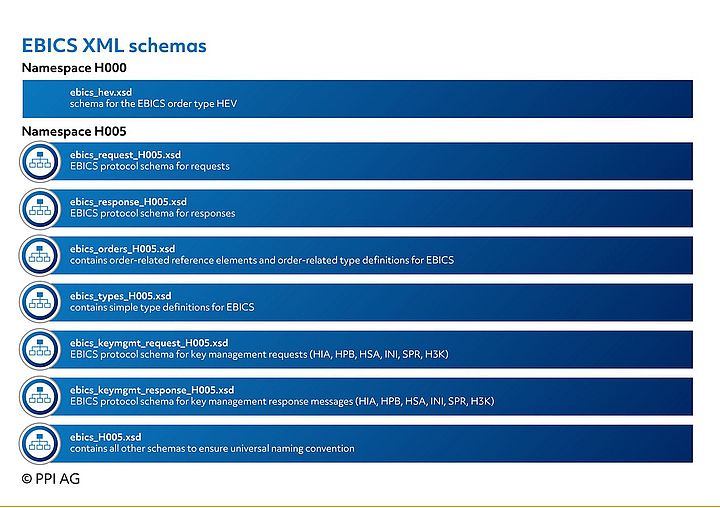

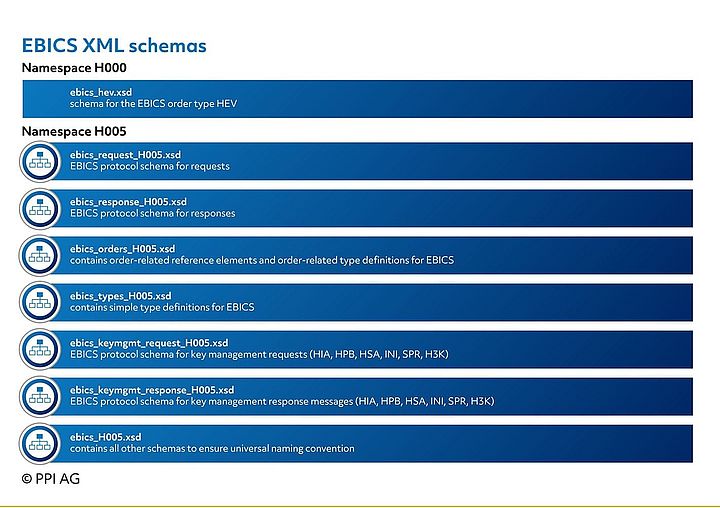

The figure below highlights all the XML schemas defined in EBICS. These are stored according to the XML namespace concept at the corresponding addresses ebics.org or ebics.de.

As can be seen, the schemas are clearly structured and the type definitions are separated from the subject-specific protocol schema.

The first schema is a special case. H000 is responsible for version administration and allows the customer product to be scanned to determine which protocol version the institution supports.

The figure does not show the namespace S001, which contains the EBICS signature schema. You can find the latest versions of the EBICS schema on the official websites ebics.org and ebics.de.

As a result of optimisation in the communication area, account could be taken of the special features of the Internet.

EBICS offers the possibility of compressing transfer data. To do this, EBICS makes use of the license-free and widespread ZIP algorithm.

Large data volumes can be segmented in the EBICS protocol so as not to block the capacities of the Internet instances on the institution side.

Thanks to the optional recovery capability of this protocol, it is also possible to intelligently retrieve a transaction if the data transmission was interrupted. This eradicates the need for duplicate transmission of segments transmitted once already.

EBICS also provides a procedure involving Nonce and Timestamp which makes it possible to recognise replays. A customer product generates a random Nonce (i.e. an "ad hoc value") and inserts it into the EBICS envelope together with a timestamp. On the institution side, a list is drawn up of the values for Nonce and Timestamp already used by the user to prevent duplicate submission of orders.

A key aspect for attaining a high level of infrastructure security is the consistent concept for signature and encryption in EBICS. Customer signatures are mandatory for EBICS. Provisions exist for bank signatures, and they will be specifically defined once the legal implications have been regulated (i.e. the issue of person-related bank signature vs. company stamp). There is also the additional authentication signature X002.

EBICS is equally thorough when it comes to encryption: besides the obligatory encryption with TLS on the transport level, EBICS' own encryption procedure E002 is also compulsory so as to ensure end-to-end security.

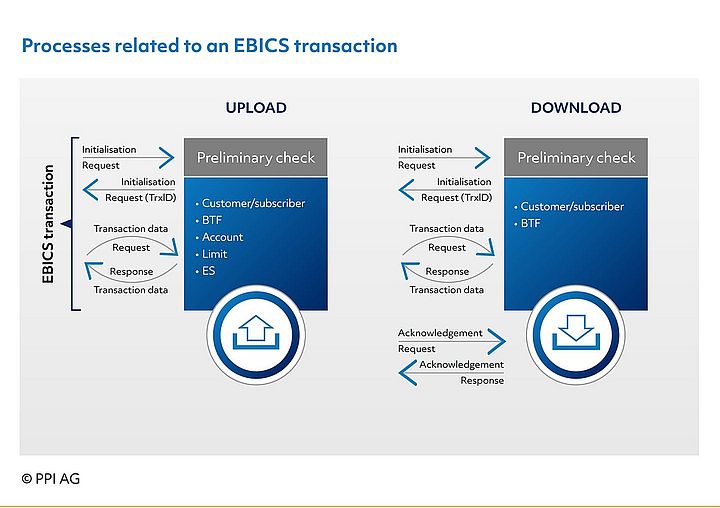

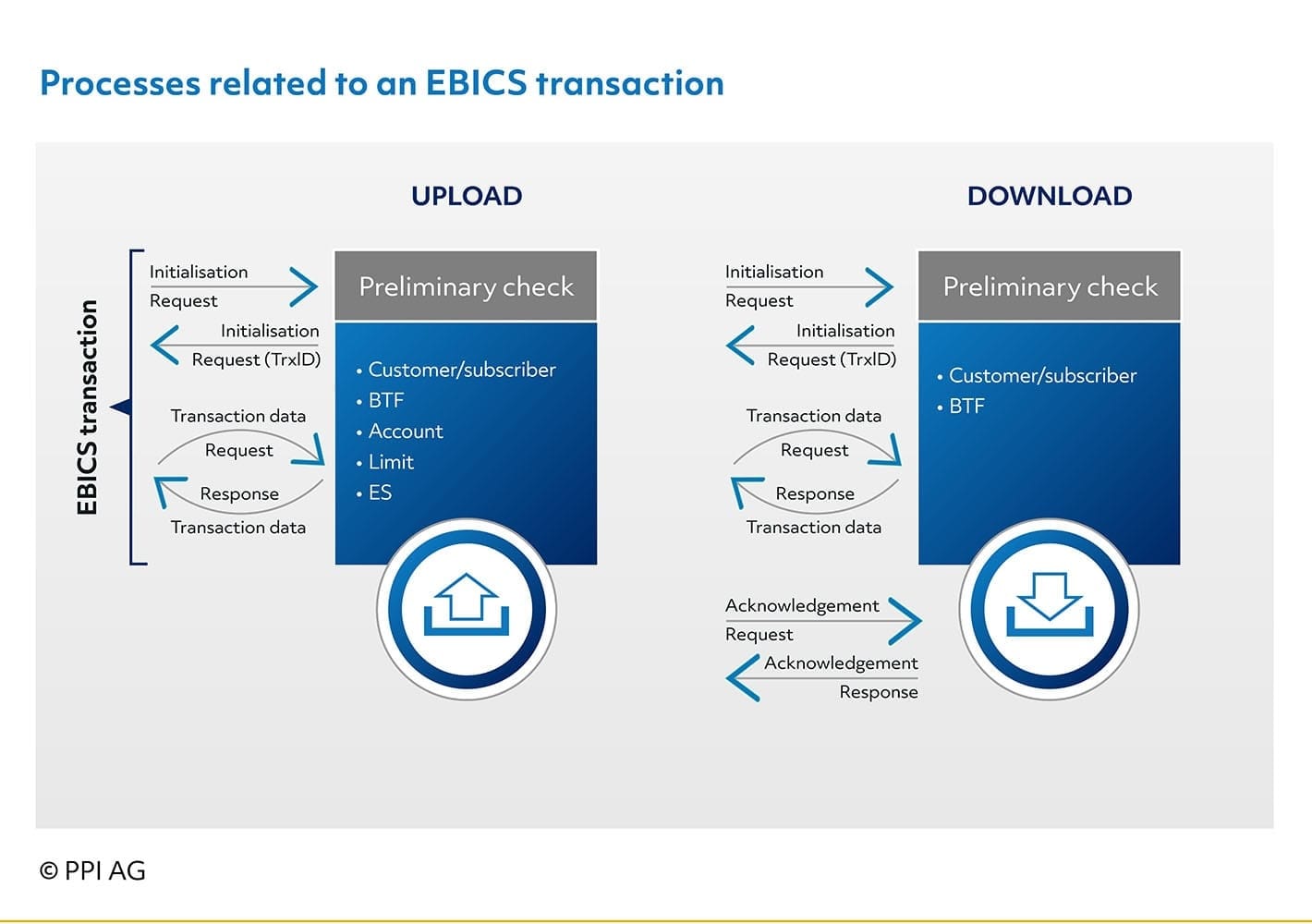

In a special initialisation step in which preliminary checks can be optionally carried out, a transaction ID is also granted for the entire transaction. This enables the formation of a transaction bracket and is a precondition for segmentation when transmitting large volumes of data.

By making these stipulations, a level of security is reached which is appropriate on operations in the Internet, the strength of which is also examined and attested in a corresponding security concept.

More details on the protocol features themselves can be found in the section EBICS processing steps.

EBICS uses two different signatures:

• Authentication signatures to identify the submitting party
• Order signatures, electronic signature (ES) for bank-technical authorisation of orders

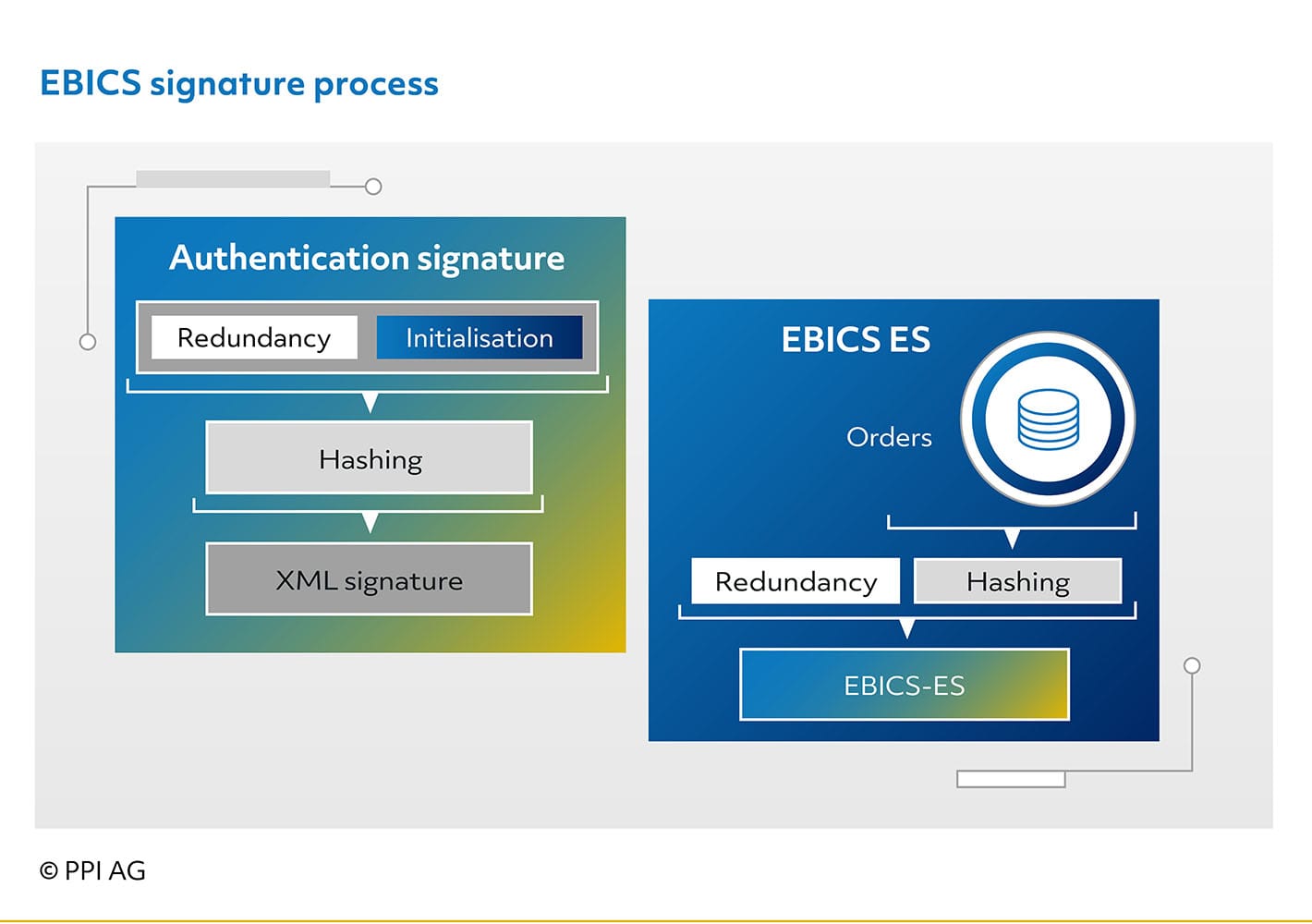

The two signature types differ fundamentally, as can be seen in the following figure:

The purpose of the authentication signature is to unambiguously identify the submitting party. The authentication signature is checked during the initialisation step as well as in every subsequent transaction step, i.e. before the transmission of the actual order data (see section EBICS processing steps).

Users who submit only orders can hold signature class T. This class also allows purely "technical users" to be set up which are then only entitled to submit orders.

The formation of the authentication signature corresponds to the standard procedure in the transaction area. The orders are supplemented by dynamic information such as session ID, timestamp etc. so that for the same reference data different signatures can be received belonging to the special situation. Cryptologists use the term redundancy for this. Over the entire structure a cryptographic checksum is formed, the hash value. The most important feature of this hash value is its ability to create an exact value based on concrete predetermined data which practically no other data combination is able to create. A 1:1 relation is thus created between data and hash value.

Using this hash value a digital signature is formed with the aid of a signature key. A point that should be mentioned is that, before formation of the hash value, the data is padded up to a specific minimum length according to a predetermined algorithm to allow this mechanism to also function for small data volumes.

As this is a common procedure in the transaction business, it is also supported in the W3C Standard XML signature in this way. That is why analogous to the XML signature, EBICS supports the authentication signature in the standard X002 and X001 (obsolete) and as of EBICS 3.0 only X002.

The electronic signature (ES) of an order on the customer side (and, in future, also on the institution side) has been carried out compulsory since EBICS 2.4 on the basis of the new procedures A005 and A006. Unlike signature formation for the authentication signature, the redundancy formation and hash value formation steps are interchanged. Due to the use of the hash value file as important, direct representation of the original data, the file is formed directly via the order file without redundancy and can thus be directly checked at any point.

For reasons of migration capability, EBICS demanded the RSA signature according to A004 for entry – with older signature types from the DFÜ Agreement no longer being supported. In procedure terms, A004 had already been customised to the current signature card of the German credit sector with SECCOS as operating system, but as already mentioned it also supported these procedures via disks or USB flash drives.

Of the procedures supported by SECCOS, a profile was supported for A004 comprising the following algorithms:

• RSA signature with key lengths of 1,024 bits
• Padding according to ISO 9796-2
• Hash value procedure RIPEMD160

In common use today and also declared compulsory since EBICS 2.4, the more robust ES procedures A005 and A006 support the following attributes:

The table reveals that A005 and A006 only differ in respect of the padding procedure.

From the explanation of the security procedure and the reference to the SEC- COS smart card operating system, one might deduce that this part of the EBICS specification has a more typical German shaping. However, this is by no means the case. The GBIC's card strategy which is strictly aligned to the annually published national shaping of the ES signature directive, guarantees that international standards are being deployed.

In general, for EBICS 3.0 the key length has to be at least 2,048 bits. Still existing A004 keys need to be changed to match this criterion.

Before a key pair can be used, the authenticity of the partners must first be established via a suitable procedure. To achieve this, certificates are used, or alternative procedures based on separate channels. While provisions exist in EBICS to support certificates according to X.509, in Germany use is still being made at the moment of the procedure based on the initialisation letter. France is already in possession of a regulated PKI infrastructure for the introduction of the EBICS standard. For this reason, certificates can also be used there for the initialisation process which since EBICS 2.5 has also been continuously supported by the standard.

Both concepts are briefly explained below; however, as evidenced in the fallback scenario in France the possibility still exists of the two worlds becoming intermingled.

The foundation for a certificate-based procedure is laid by an appropriate Security Policy. This means that it is necessary to regulate which certificate issuer can be deemed as secure and at which level. In France, clear and published definitions exist for the use of certificates in EBICS. The highest security level applies to issuers of qualified certificates according to the European Signature Directive. In France, however, lower security levels are also sufficient for the pure exchange of payment transaction files as illustrated below.

In France use is made of the signature classes T and E. At the moment no distributed ES is supported. Instead two basic profiles exist for submission (T) and authorisation (E).

For the submission of certificates, use can be made of the new order type H3K, valid as of version 2.5. The remaining processes for initialising a customer remain valid from the EBICS perspective.

• Submitting party profile T based on certificates already as of EBICS 2.4
  The initialisation must not necessarily be performed by a listed certification authority (CA). Self-signed certificates of the institution with an INI letter are also allowed.
  If, however, the certificate is issued by a CA this authority must be listed on the Trusted List.
• Authorisation profile TS
  Use is made of electronic signatures for Transport and Signature. The procedure corresponds roughly to the ETEBAC 5 standard. In this case the certificate for the signature key must be issued and signed by a CA, and the CA must also be listed in the Trusted List. The certificates for the authentication and encryption key can also be self-signed.
  The certificate check is compulsory for the signature key while the check for certificates for the authentication and encryption key is run against the CA, provided the certificates were issued by a CA.
• INI letter as fall back scenario
  In France, INI letters are a part of the initialisation process when making use of certificates. Regardless of whether certificates are being used, the customer must at all events first send an INI letter.
  Non-CA based certificates are activated exclusively via the INI letter. The CA must permanently check the CA-based certificates. If the CA has successfully checked the certificate, additionally defined certificate specifications must be matched with the conveyed specifications of the submitting party. If the specifications do not match, manual activation is still possible – based on the specifications in the INI letter.

After being successfully checked and activated, the customer's certificate is saved in the application system. Future lock enquiries will be carried out on this basis – thus the customer need only submit the certificate once.

Independent of the authorisation and submission profiles that are common in
France, EBICS 3.0 generally uses the certificate format for keys. For the moment, there will still be the different practices so that the effect of harmonisation
is not as pronounced yet.

For the INI letter procedure, a user creates a key pair and conveys its public key with the order type INI (or HIA if the key is a public key for the authentication signature or for the encryption) to the institution. Parallel to this, an initialisation letter is printed out containing administrative data, the public key and associated hash value. This initialisation letter is manually signed by the user and sent by mail or fax to the institution where it is compared with the electronically conveyed data. If the data match, the key is activated and can now be used by the user. The same procedure can be applied in reverse when the bank signature is introduced at a later date. In this case the user will have the task of comparing the key data conveyed electronically and by post and confirming that the data match.

For EBICS use is made of duplicate encryption according to TLS and of EBICS' own current procedure E002 (E001 is the outdated version) in order to receive both the standard encryption in HTTPS as well as the end-to-end encryption. For E002, use is made of the AES procedure recommended by BSI since 2009.

TLS is the successor of SSL. Both encryption protocols are able to guarantee authentication as well as encryption on one transport route. Corresponding implementations exist on the customer side e.g. in the Internet browser and on the institution side in common web servers.

While setting up a TLS connection, certificates and supported procedures are exchanged between the partners and a session established on the basis of this.

In line with general practice, EBICS only uses the server authentication from TLS and is currently not supporting any TLS client certificates. The Internet certificates generally deployed by the institutions are used as server certificates (i.e. those certified via VeriSign).

Encryption takes place in both directions. The only procedures supported are strong encryption procedures or cipher suites. Valid cipher suites can be found on the website of the Bundesbank or at ebics.de.

Here please note again, that with EBICS 3.0 the Transport Layer Security has been transferred into a different document.

E001/E002 is a so-called hybrid procedure, i.e. consisting of asymmetric and symmetric algorithms. The basis for this is generally an asymmetric RSA key as encryption key. For performance reasons, the message itself is symmetrically encrypted. A dynamic key is used as key which – secured by the encryption key – is exchanged.

E001 uses a 1.024 bits encryption key and the padding algorithm PKCS#1. At the latest with the introduction of EBICS 3.0, E001 shall no longer be supported by the implementations. With the introduction of EBICS 3.0 and the previous version 2.5, both EBICS 2.4 and the procedures E001, X001 and A004 become obsolete.

E002 was deployed as the next development in EBICS 2.4. Here, the transition from Triple-DES to AES is carried out (2009 recommendation of the BSI - Federal Office for Information Security in Germany).

In the German DFÜ Agreement, the Swiss Implementation Guidelines and the format standards of the French CFONB the following fields of application are supported by operative order types and FileFormat parameters with EBICS and by the respective BTF with EBICS 3.0:

• SEPA and other national payments
• Foreign payments
• Securities trading
• Documentary credit business
• Information on daily account statements and other information on transactions booked and notifications of account movements (MT940/MT942 or camt XML and other formats)

In addition, EBICS 3.0 introduces the following new order types for BTF:

• BTD: administrative order type for downloading a file, described in more detail by the BTF structure
• BTU: administrative order type for sending a file, described in more detail by the BTF structure

EBICS supports order types and FileFormat parameters for SEPA payments customer-bank and bank-bank (Bundesbank and interbank STEP2). At the moment, the following SEPA messages are supported for the customer-bank inter-face:

• SEPA Credit Transfer Initiation
• SEPA Direct Debit Initiation
• Rejects Prior to Settlement

These messages are reflected in the corresponding EBICS order types, taking into consideration the following specifics.

In the course of implementing the SEPA messages for the GBIC, it was deemed reasonable to introduce extended formats in addition to the standard SEPA format. The extended formats can be used depending on the financial institution or use case. They relate specifically to collective orders with multiple group formations, such as ordering party accounts or execution dates which can be treated in differing ways (e.g. the treatment of several ordering party accounts):

• SEPA Standard Format
  Use of the SEPA standard format, subject to the restriction that the only orders possible are those for an ordering party account. To process orders from several ordering party accounts, several orders must be submitted in the SEPA standard format for this option.
• SEPA Container
  GBIC-specific protocol extension to enable the submission of several SEPA standard formats for several ordering party accounts within one order type
• Extended Grouping Options
  SEPA standard formats which offer the possibility of submitting orders for several ordering party accounts when using the extended grouping options in the SEPA format itself.

This breakdown over several forms can be explained by the optimised processing method for the various IT service providers.

The following table lists some of the SEPA order types used in Germany according to different forms:

In addition to the mentioned SEPA order types, further order types were developed with different format characteristics to process the specific business transactions of the German Banking Industry Committee. These primarily include the order types for processing the national SDC procedure.

To give the full picture it is worth mentioning that the SWIFT formats MT940 and MT942 were adjusted to convey the SEPA-relevant data for SWIFT daily statements via the order type STA.

To map the payment transactions from SEPA orders without any loss of information, new download order types for camt formats (C52, C53 and C54) were introduced as equivalent to the MT94x messages (STA and PFM) and the DTAUS turnover information (DTI).

Details on the SEPA data formats and their application in Germany can be found in annex 3 of the DFÜ Agreement.

Depending on the country, outside of SEPA, different national payment formats with individually defined order types and FileFormat parameters can also be used.

An important part of the present international electronic payments is the free and open standard "ISO 20022: Financial Services – Universal financial industry message scheme". The aim of this standard is to simplify and unify the global communication in the finance sector. Topics of the standardisation are, among others, the used terms, procedures and message formats. This facilitates a global exchange of finance information between different systems. The messages are exchanged between customer and financial institution or between financial institutions and are represented as an XML document (Extensible Markup Language).¹ This is different in the former formats like the DTA format.

For this, many message types have been standardised through ISO 20022 (to be found here: www.iso20022.org/iso-20022-message-definitions). For every type there is a formal specification of the available elements and structures in the form of XML schema files. For their unique identification each type also has an identifier or a name. In addition, there are various versions of the message descriptions, so that differing versions of the underlying message descriptions can be differentiated. Each message type is suitable for the representation of one or multiple business transactions (for example submission of a SEPA credit transfer).

Below some of the relevant messages for the customer-bank-communication are listed:

Respective messages are also available for the interbank communication (pacs messages, among others). ISO 20022 messages are also used for instant payments.

Thus ISO 20022 establishes a unified form for the exchange of messages in the finance sector. On this global level, initially the total sum of all available elements is described for a message.

By restricting the general requirements and specifying additional usage rules (technical and/or subject-specific), organisations can define their own subforms of the ISO 20022 messages for certain validity scopes.

One organisation that has defined such further specifications and additional rules is the CGI (Common Global Implementation) Group. They put focus on the message exchange for the global and cross-country payments. At the same time many varying payments order types can be represented. There is no specialisation, for example, on SEPA payments.²

Another organisation that has their own specifications for ISO 20022 messages is the European Payments Council (EPC).³ The EPC publishes specific implementation guidelines which describe messages for SEPA payments like credit transfers (ISO 20022 name pain.001) by use of ISO 20022.⁴ The documents present a restriction of the general ISO 20022 specifications, like permitted elements and additional payment-specific rules that need to be considered. That way the EPC format only keeps those elements that are required for SEPA payments. The format descriptions for, among others, the permitted values are only available for the EPC format as a general textual description.

On a national level separate manifestations have been defined based on the ISO 20022. In Germany for example the GBIC defined certain specifications on how XML messages have to be structured based on the ISO 20022 and which rules have to be considered for the transported information. They describe different data formats and procedures in detail and publish the respective XML schema files.⁵ This is similar with the Swiss financial centre. With the Swiss Payment Standards the SIX (Swiss Infrastructure and Exchange) published the respective stipulations and implementation recommendations for realising ISO- 20022 messages. They contain concrete specifications, for example on the exchange of credit transfer orders. Stipulations for Swiss payment orders, like Swiss direct debits, exist as well.⁶

The specifications of the GBIC as well as of SIX apply various stipulations of the EPC, but they elaborate ISO 20022 specifications in a country-specific way. That way the GBIC and SIX specifications present more concrete forms of the EPC specifications. Especially the format descriptions are, in contrast to the EPC format, partly more detailed in the form of XML schema components. Many checks can that way be performed directly with the XML schema (for example for the DK format). Same for all is the ISO 20022-based form with a universal XML description.

In addition, the SIX specifications for instance offer a framework for individual configuration to the financial institutions, for example depending on the institution's service portfolio.

Furthermore, in France the CFONB released an implementation for the local ISO 20022-based application of pain.001 payments⁷ (SEPA, non-SEPA, …) or pain.008-SEPA direct debits, among others⁸. The varying manifestations are being differentiated in the documents.

Based on the very general description of the ISO 20022 standard, the varying manifestations are always more concrete and specific or restrictive.

The ISO 20022 messages are then communicated via EBICS as an upload or download transaction (see section EBICS processing steps). This way, for example, the pain.001 message (credit transfer) is sent via EBICS from the customer system to the financial institution (see section SEPA payment transactions). The download order for the respective pain.002 status report is also created via EBICS (see section SEPA payment transactions).

The pain.002 messages can, depending on the manifestation of the ISO 20022 standard, include positive or negative messages to the payment orders. A financial institution with a pain.002 message can inform the customer system in a machine-readable way about the reasons for rejected credit transfer orders. The customer system can suitably consider these errors. In addition, different status codes can give information on the status of complete orders or single partial transactions. Especially a credit transfer order that consists of various single erroneous or correct transactions can be partially processed. In that case, only the correct transactions are processed, whereas the erroneous transactions are separate from the standard processing and will be reported to the customer. They system can react and give error information in a fine-grained and machine-aided way.⁹

¹ See ISO 20022:
www.iso20022.org as a start page and for more information, for example, www.iso20022.org/faq.page

² See CGI Group / SWIFT:
www.swift.com/standards/market-practice/common-global-implementation

³ See European Payments Council(EPC):
www.europeanpaymentscouncil.eu

⁴ See European Payments Council (EPC:
www.europeanpaymentscouncil.eu/document-library/implementation-guidelines/sepa-credit-transfer-inter-psp-implementation-guidelines

⁵ See GBIC, SIZ:
www.ebics.de/de/datenformate

⁶ See SIX:
www.six-interbank-clearing.com/en/home/standardization/iso-payments/cus- tomer-bank/implementation-guidelines.html

⁷ See CFONB:
www.cfonb.org/index.php/instruments-de-paiement/virement

⁸ See CFONB:
www.cfonb.org/instruments-de-paiement/prelevement

⁹ For example DK standard, see GBIC, SIZ:
www.ebics.de/de/datenformate

The list below highlights a number of examples of format-dependent, standardised order types used in Germany and Switzerland:

• AZV send AZV (cross-border payments) order in disk format (DTAZV in Germany)
• STA download SWIFT daily statements (SWIFT MT940)
• VMK short-term account reports (SWIFT MT942)
• VML long-term account reports (SWIFT MT942)
• C52 download bank-to-customer account report
• C53 download bank-to-customer statement report
• C54 download bank-to-customer debit credit notification
• ESR download ESR information (specific for Switzerland)

Furthermore, in Europe different national formats are used especially for the processing of cross-border payments. Still, the ISO 20022-based formats are gaining more importance here, as well (for example, ISO Global, CGI) (see section ISO 20022)

Up until now, France has been almost exclusively using the following order types to ensure a transparent transfer of files of any format. It is subject to the provision that the name of the order type does not allow recognition of the format being transported, as has been the case in Germany. Instead, the order type FUL and/or FDL are given a format parameter of greater length which allows for continued control. These order types have been available as of EBICS 2.4. The file upload order type FUL is used for submission and the file download order type FDL is used for downloads. Together with the order types, the structure and the format parameters to be used are documented as appendix to the EBICS specification.

In addition to the standardised order types, the following classification can also be made for use in EBICS:

• System-induced order types – especially for EBICS
  • e.g. order types in connection with the EDS
• Other system-induced order types being supported
  • e.g. HAC, PTK for downloading customer protocols
• Reserved order types for file transfer between companies
  • e.g. sending FIN for EDIFACT-FINPAY
• Miscellaneous order types reserved in the specification when using non- standardised formats, e.g.:
  • FTB for dispatching/downloading any file
  • FTD for dispatching/downloading free text files
• Optional EBICS order types
• e.g. retrieving HVT for EDS transaction details

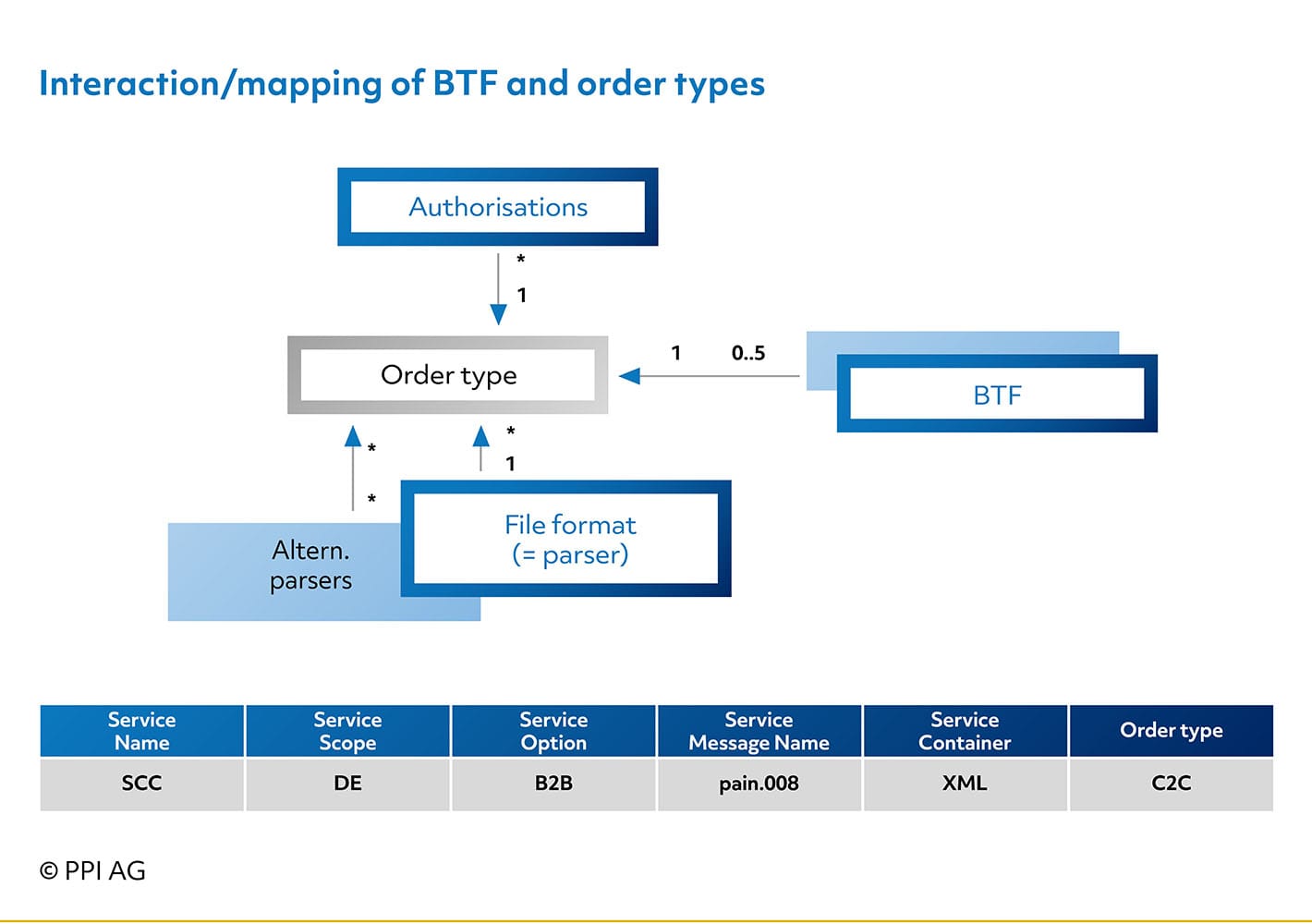

BTF translates to business transaction format. With the introduction of EBICS 3.0 BTF unifies the transfer formats in Germany, France and Switzerland. Instead of the old order types and format parameters, now the BTF structure is exchanged during the communication with the bank server and it identifies a business transaction.

To guarantee the compatibility with older versions of EBICS, adjustments from format parameters and order types to BTF standards have been facilitated by
match overviews (mappings). On a national level match mappings have been    32
defined for order types and format parameters. The EBICS clients have to consider the mapping. During the transition period mixed forms of the supported EBICS versions might emerge:

• Client side
  Financial institution A, for example, already supports BTF, while financial institution B still only offers EBICS 2.x. The bank accesses of the EBICS client should be adjusted to the respective version of the bank server.
• Server side
  The employees of a customer use different versions of the EBICS clients. While one employee submits an order via the order type of an older version, another employee that has the EBICS client 3.0 signs the order with the EDS via BTF.

The electronic distributed signature (EDS) is probably the most important application function in EBICS. Prompted by available market products, this extension has made its way into the EBICS specification.

The electronic distributed signature makes it possible for the submission of an order – which, if necessary, already bears a first signature – to be disconnected from the actual release. It is possible to submit a signature file that is disconnected from the order in terms of time and location. The connection between two files is made via an order number and an order ID.

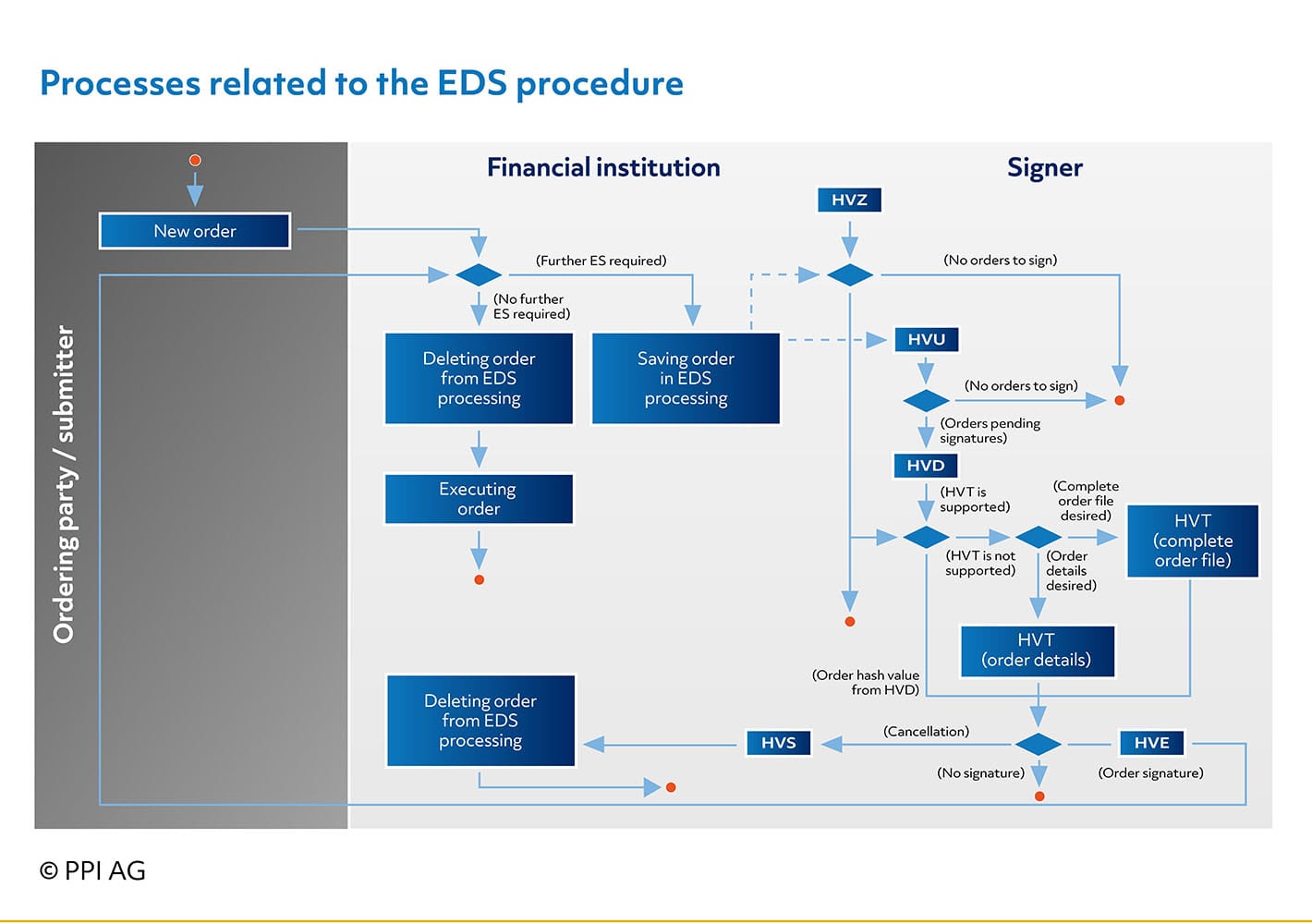

The procedure is as follows:

• A user submits an order, e.g. with order type CCT, and if necessary, adds an electronic authorisation signature of its own with signature class A.
• On the institution side, the order is checked to ascertain whether further signatures are required. If this is the case, the order is cached in the institution along with the hash value.
• A second user would now like to release the order and has received the required data such as order number and hash value by an alternative channel (the provision of the order number and hash value lies outside of EBICS and is not part of the server components on the institution side).
  The user now has the following possibilities:
  • With order type HVU or HVZ he calls up the orders to be signed by him and receives an overview which, among other things, contains the order type, indicates the signatures that have been given and those missing and shows the length of the uncompressed order.
  • For each individual order he can have further details transmitted via order type HVD such as routing slip information or the hash value.
    This step is omitted if the overview was downloaded with order type HVZ as HVZ already provides all the necessary details.
  • With optional order type HVT, the institution supplies information upon user inquiries, such as individual transactions of the order, remittance information right through to the entire order.
• After analysing the orders the user now has one of the following possibilities:
  • Signature with order type HVE
  • Cancellation via HVS

The following figure, which has been modelled after the illustration in the Specification for EBICS connection ^[1], gives a comprehensible overview of the sometimes a little complex related processes:

Whereas the EDS is in widespread use in Germany, it has not been that common in France and Switzerland. There, it shall also be implemented with EBICS 3.0.

In France the signatures are usually sent with the order. With EBICS Profile TS, depending on the number of signatures, an order is processed as follows:

• One signature on the order: the order is fully authorised with one signature and is executed.
• Two signatures on the order: the decision as to whether the second signature is required and the order is sufficiently authorised is made in the application system. The application system also decides whether the order is still executed even though, for example, one of the two signers has no authorisation.
• One signature on the order, second signature depending on the limit: Whether the order has been sufficiently authorised or a second signature is required, depending on the limit, is decided in the application system.

With the introduction of EBICS 3.0, mixed contracts of order types and BTF might emerge during the migration period. To fit in with existing authorisation models, certain framework conditions have to be applied to BTF orders (here BTU for the submission), for example:

• BTU does not have to match that of the order, but it needs to be configured with the same order type.
• BTU is used for requesting signature folder data.
• According to the specification, empty fields in the BTF filter are wildcards: All matching orders from the signature folder are provided (it is not possible to address a certain BTU with an empty field).
• BTU from the HVx is not additionally reported in the order BTU in Exits.

Although the term portal does not explicitly appear anywhere in the EBICS specification, the possibility exists of involving third parties in the order submission by using the authentication signature. EBICS does not go as far as FinTS which gives portal operators or intermediaries a role of their own – but the separation of submitting party (technical user) and initiator enables simple portal scenarios to be shown. By using signature class T, this transport instance is also given rules appropriate for this.

The preceding sections have already referenced the fact that certain functions such as recovery or detailed inquiries at EDS have an optional character. A number of special functions from this portfolio are now to be briefly presented here.

As described in greater detail in the section EBICS processing steps, an EBICS transaction comprises two steps. In the first step preparations are
made with the aid of a brief message, the initialisation, for what could well prove    to be a substantial file transfer.

In this step the option exists for preliminary checks to be carried out on upload transactions within a certain framework, thereby ruling out the possibility of unauthorised transfer. The following details can be verified in the context of the preliminary check:

• Account rights
• Limit
• ES verification based on the hash value delivered with the file

The possible extent of the preliminary check depends on which checks are actually supported by the institution and which information is or can be supplied by the customer product. In other words, we are not dealing with a functionality to ward off attacks but with one intended to upgrade operational security and optimise the resource requirement as incorrect file uploads are prevented from being started at all.

The following set of order types enables the customer product to download information from the institution on the agreements reached:

• HAA    download of retrievable order types
• HPD    download bank parameters
• HKD    download customer data and user data of the customer
• HTD    download customer data and user data of the user

These optional order types allow a user to correctly prepare his customer product for access or the customer product can set up an environment locally that suits the user by, for example, only showing the order types supported.

In the course of transmission, not only are the actual access parameters such as URL and institution name conveyed but also the optional functions which are supported by the institution, e.g. preliminary check or recovery.

The customer and user data provide information on the following details of the business agreements:

• Customer information, e. g. address data
• Account information, e. g. account numbers and currencies
• Authorised order types
• User attributes, such as user ID and signature class

With this very detailed information a customer product can carry out a fully-automatic configuration of the local environment. In the event of error, a targeted analysis is also possible by using the status information also received.

It is becoming increasingly clear that corporate customers also need real-time notifications of incoming payments for their business models. This trend is due not least to the instant payments processes. With EBICS communication, the initiative always comes from the corporate customer (EBICS client). The EBICS server of a financial institution only reacts to incoming requests (inbound) but does not initiate data exchanges on its own. But how should information be transmitted from the financial institution to the customer in a timely manner? To achieve this, the GBCI has agreed on the implementation of an interface for real-time notifications that can be used by the financial institution to initiate a download process for the customer system while retaining the EBICS role model (see Appendix 2 Specification "Real-time notifications" ^[9]). For outgoing communication (outbound) from the financial institution to the corporate customer, a push service based on WebSocket is used, which functions as a central component for actively sending notifications to EBICS customers and users.

Another area for using EBICS are interbank operations for exchanging mass payments (SEPA payments) as well as for instant payments.

In Germany, the manufacturer-based solutions are increasingly being replaced in bilateral clearing by EBICS as open standard.
A scenario in interbank operations is the connection of institutions to the Bundesbank. The Bundesbank offers only two interfaces with SEPA:

• EBICS with SEPA pacs messages
• SWIFT FileAct

The Bundesbank has introduced its own order types in EBICS and determined formats (e.g. for PTKs).

Another scenario in interbank operations for SEPA payments is the connection of banks to STEP2 of EBA CLEARING. Since 2013, EBA CLEARING also provides this access via EBICS (as of EBICS 2.5) to connected financial institutions as an alternative to the SWIFT access. EBA CLEARING has also introduced its own order types in EBICS and specified formats for data exchange via EBICS.

So far, no stipulations have been recorded in the EBICS specification for the direct bilateral exchange between banks. In general the partners make bilateral
agreements. Apart from the specification on how to handle returns (R transactions), these agreements also cover business policy issues like e.g. the transfer of liabilities or specific SLAs (e.g. regarding maximum file size).

For order types and technical regulations, the EBA CLEARING regulations for the STEP2 link are adopted in general.

Instant payments, also called ‘immediate’ or ‘real-time’ payments, present the next step for harmonising payments in the SEPA area with the goal of aiding the competitiveness and economic growth in Europe. After the switch to SEPA credit transfers and direct debits is nearly complete and the digitalisation of the whole economy has created new expectations for customers and retailers, instant payments represent the focus of the European Payment Council (EPC) for the coming years.

Centrepiece is the new SEPA Instant Credit Transfer (SCT Inst) schema. It offers a strong connection to the existing SEPA payments and already established processes and implementations through a special configuration of the standard SEPA credit transfer schema. Even though the schema itself only supports euro, of course debit and target accounts can be kept in other currencies.

Since November 2017, EBA CLEARING offers an Instant Payments Service (RT1) based on the SCT Inst on a European level. The ECB plans the introduction of a Target Instant Payments Service (TIPS) for the fall of 2018. Beside these, other local procedures are productive for the respective countries.

One of the main characteristics of instant payments is the time period between the transfer of a validated SCT Inst order of the ordering party's financial institution to the response of the beneficiary's financial institution. As a rule this time period should not exceed 10 seconds. If an exemption timeout occurs, there are rule for the status requests in the rulebook. In every case, until the financial institution gives a negative feedback it is assumed that the payment has been carried out successfully. This presumes that all involved systems are available 24/7/365.

A single instant payment is limited to 15,000 euros due to security reasons; higher sums can be agreed upon bilaterally. SEPA instant payments exist in 34 countries of the SEPA zone. The support of SCT Inst is currently not mandatory for financial institutions. For the realisation of an instant payment, this function has to be supported by the beneficiary's financial institution.

As an access channel to the RT1 service the EBA CLEARING offers SiaNet and EBICS (as of EBICS 2.5). Analogous to the Step2 connection, EBA CLEARING offers an implementation guide for the connection via EBICS. The instant payments messages are transferred in one step via EBICS and the file-based reports are transferred via EBICS in a process analogous to STEP2. For the one-step, message-based use of EBICS 3.0 in the RT1 service, a separate specification has been created in the form of a delta document (see Use of EBICS for the Clearing & Settlement of Instant Payment Transactions (Delta - Concept) ^[8]) and published on the EBICS website (www.ebics.de and www.ebics.org).

FinTS (Financial Transaction Services - formerly Homebanking Computer Interface) is also a DK standard which, however, is focused on online banking with private clients and small and medium enterprises. FinTS in its classic form maps dialogs between customer and institution and processes message-oriented individual transactions. FinTS contains functionalities such as bank or user parameter data comparable to EBICS.

In its most recent version 4.1, FinTS also relies consistently on Internet standards such as HTTP or XML. Dialog-free datagrams and the bank-customer communication were also added to the communication protocol.

In the security area, FinTS also supports electronic signatures as well as the PIN/TAN procedure in various forms.

As with EBICS, FinTS also supports the usual financial data formats such as    SEPA, camt, DTAZV and SWIFT and refers to them as business transactions.
Instant payments are also included in FinTS. In the meantime the GBIC is also ensuring that similar use is being made of the versions and contents of these formats by both standards. However, FinTS also has the possibility of defining a large number of own business transactions, ranging from standing orders across time deposits to free notifications to the institution. These business transactions create (at least) a national standard whenever an international definition is missing.

In the small and medium enterprises segment, apart from the business transactions identical to EBICS, e.g. for collectors or account turnover, FinTS also offers customers the possibility of implementing the electronic distributed signature (EDS) themselves. The standard is currently lacking all the possibilities of mass payments such as segmenting or recovery.

Bearing these various points in mind, FinTS must be positioned as an addition to EBICS. This applies wherever small/medium enterprises or corporate customers have to be viewed as a joint target group as they operate their financial transactions in both worlds, i.e. a company carries out both mass payments and is also active in the investment and securities business. For some business types a crucial point would also be where the transaction is being carried out, i.e. in the book keeping department or by a managing director out on business.

Modern customer products have already been geared to this situation and already offer two communication protocols with EBICS and FinTS.

For a more detailed explanation of FinTS it is worth reading the FinTS Compendium which can be downloaded from fints.org.

In the interaction between EBICS and SWIFT the following structures must be mentioned:

• Classic FIN formats in international payment transactions
• XML and ISO activities of SWIFT
• SWIFTNet as the company's own communication standard
• SWIFT FileAct as the company's own file transfer standard

There is not a great deal to mention about the classic FIN formats such as MT940. They are stable, are only subject to statutory amendments and are packed into the protocol of the two relevant German standards EBICS and FinTS in the same way. A degree of independence from SWIFT is thus also created, as the only work carried out is with referencing.

The fact that an XML-based version, SWIFT XML, also exists alters nothing in the clear separation of tasks between the standards. More important here is the fact that SWIFT has taken a very abstract approach in the creation of XML formats and carried out what was in effect a reverse engineering of the existing world. After years of laborious work, process models were produced for international payment transactions using UML which today produce the FIN and XML formats as mere derivations. This methodical approach gave SWIFT the lead in the competition over international payment standards, enabling it to successfully position the core components of these models as ISO Standard 20022.

While SWIFT's ISO efforts are likely to strongly influence the development of payment transaction formats, the associated transport log which offers the foundation for SWIFTNet is of subordinate importance and must be viewed as a proprietary development. SWIFTNet doubtless has a stable diffusion rate in the interbank business, but it plays practically no role at all in the customer-bank relation.

That is why the SWIFT standard constitutes an important instance for publishing and servicing payment formats. It's positioning in relation to EBICS has also unambiguously been established and should continue to be stable in the coming years.

As a result of France's involvement in the SEPA Company, SWIFT's influence has also strengthened as this standard plays a major role in France. SWIFT FileAct is also more frequently encountered as file transfer protocol. Nevertheless, the rule applies that SWIFT (see swift.com) and EBICS coexist harmoniously.

The French manufacturer standard PeSIT can be considered as a complementary standard to EBICS, particularly in the interbank business but also for big companies. PeSIT can also be used to submit mass payments and download turnover data. Corporate customers in France often rely on products that apart from EBICS also have the PeSIT-IP module.

The file transfer protocols based on FTP are also occasionally used in Europe for payment transactions. Contrary to the protocols discussed so far, these only cover the transfer and not any kind of business processing. The security of the protocols also does not match the current requirements for payment transactions. Due to its widespread availability as a system software, SFTP or FTPS is often used for the general file transfer.

This description of standards tells us in no uncertain terms that there are no currently comparable industrial standards available – not even in the international sector.

This makes it clear that EBICS will become the future key standard for bulks payments in Europe and far beyond that. It is strengthened by the fact that next to the partners of the EBICS Company (Germany, France and Switzerland), other countries like Austria, Spain, Italy, Portugal and the Republic of Ireland are also increasingly supporting the EBICS on the part of the financial institutions. This development is facilitated by the introduction of EBICS 3.0 and the harmonisation that goes comes along with it.

Another motivator for the implementation of EBICS in other EU states can be instant payments, as here a unified European processing would bring advantages for all involved parties.

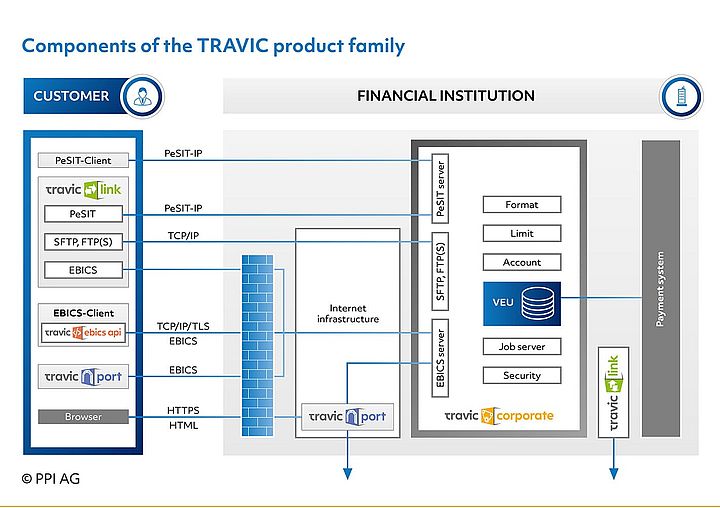

The final section now offers an example of an EBICS implementation and migration based on an actual product family.
